Body Temperature Checker / Effective Body Temperature scanning and monitoring / Wall Mounted

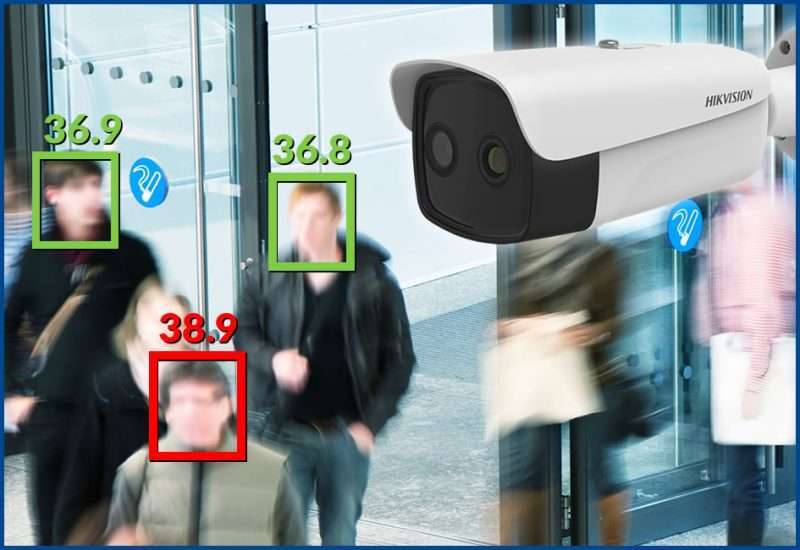

Body Temperature Detection Camera

We know that aside from isolation, the best way to prevent the spread of Coronavirus is to detect the virus as early as possible. We also know that it isn’t always possible or efficient for an organisation to use manual thermometers to check the temperature of every employee.

Our body temperature detection system can be used as a very effective mass fever scanner, allowing organisations to simultaneously monitor the temperature of up to 30 individuals in areas in which there is a constant flow of people. Comprising of a thermal imaging camera and facial recognition technology, our Body Temperature System can provide temperature information in real time, preventing the spread of the virus to potentially thousands of other key workers and members of the public.

Fever detection cameras – a life-saving development

Body Temperature Detection Bullet Camera & Turret

Bullet & Turret Cameras

Touch-Free Terminal

Body Temperature Detection Walk-Through Arch

Walk-Through Arches

A key indicator of coronavirus infection, otherwise known as COVID-19, is elevated or raised body temperature. However, as individuals may not even be aware of this themselves, with businesses and organisations relying more and more on staff being able to come to work, the risk of spreading the virus remains extremely high.

Non-contact handheld IR Laser thermometers go some way towards testing the body temperature of individuals, but there are a number of challenges with this approach. The market is flooded with cheap, low quality, highly inaccurate hand-held thermometers that do more to raise concerns and frustration than they do solve the issue of measuring body temperature to reassure individuals.

The handheld method of testing is perfectly ok as the final, double-check to confirm a previous alert of high temperature, but as a first-line defence, it is simply impractical where many people are flowing through a narrow channel such as the entrance to a building or office.

Rapid testing for raised body temperature

The solution to simultaneous mass body temperature checking is using a high quality, purpose-designed Body Temperature Detection Camera System.

Our solution allows near-instant and accurate facial temperature monitoring of up to 30 people simultaneously, and in a continuous flow. The readings are shown live on a monitor and fed dynamically to a Network Video Recorder (NVR) which triggers an alert when high body temperature is detected in an individual. The person in question is highlighted on a screen to allow for immediate identification.

Fast response times and high accuracy aids in the detection of potentially infected individuals who can be second-level tested with a suitable, high-quality hand-held, non-contact digital thermometer.

How does our body temperature detection system work?

Any object with a temperature above absolute zero will emit a detectable amount of thermal radiation in the form of infrared. A thermal camera converts infrared radiation into grayscale values and matches those grayscale values to temperature values through an algorithm model.

Thermal cameras with high-temperature accuracy can help detect elevated body temperatures which may indicate the presence of a fever. Ideal situations include measuring the elevated body temperature screening of employees, visitors, commuters, shoppers, and construction workers.

Thermal Camera

Measurement accuracy ±0.5 °C or ±0.3 °C depending on the option chosen
Measurement distance: 0.8m-2.5m or 2m-7m depending on the option chosen.
Up to 30 targets at the same time

Blackbody Calibration Unit

Blackbody is a standard temperature source used for temperature calibration
Measurements are affected by environmental factors so this device calibrates in real-time

Smart NVR

Integrated with face detection
Suitable for single-point emergency deployment and small or medium-sized project selection

Multiple-person monitoring
Up to 30 target temperatures can be measured simultaneously at a distance of up to 7m from the camera

Bi-spectrum, dual channel, all-weather
Visible light is all that’s required to capture the human face, allowing thermal imaging to monitor body temperature under a variety of conditions

Real-time face recognition
A proprietary face-recognition algorithm is used to accurately measure the temperature of a person’s face

High level of accuracy
Depending on the option chosen, modified ±0.5 °C or ±0.3 °C (emissivity, distance, ambient temperatures)

Body Temperature Detection System video

Body temperature checking features

Fast temperature measurement – detects temperatures in up to 30ms
Instantly Scan up to 30 people in high footfall areas – real-time, continuous detection
High-temperature accuracy – can measure temperature within a ±0.5 °C or ±0.3 °C range (depending on option chosen)
Long-distance, remote scanning – scan up to 7m away
Facial temperature measure only – facial recognition is combined with heat detection to reduce false positives by only measuring facial temperature
Mobile app and alerts – get alerts sent directly to your mobile device – no need for a monitoring station
Environment calibration – adjust settings based on environmental conditions
Dual spectrum technology – the camera only needs visible light to capture a human subject, allowing thermal imaging to function under a range of conditions
Versatile mounting – the unit can be wall-mounted or used via a tripod giving you flexibility in positioning.

Where can the Body Temperature Detection System be used?

The system is ideal where high footfall is commonplace and unavoidable:

Medical facilities – first and foremost, it’s important that we offer protection to healthcare workers ‘on the front line,’ who are risking their lives to help others at this time. The body temperature scanner can be used in hospital entrances, doctors surgeries or pop-up/field hospitals in which there is a high footfall of both medical staff and members of the general public.

Transport – public transport usage at this time may be unavoidable if you are a key worker or are required to travel. The body temperature scanner can be used in transport hubs such as airports and train stations to quickly detect an infected passenger and take appropriate action to reduce the spread of the virus.

Supermarkets – the UK government has deemed a visit to the supermarket as essential travel. Our supermarkets are still very busy at this time and an additional precaution such as a body temperature scanner can be an effective preventive measure to stop the spread of the virus in stores.

Events – Whilst the majority of events have been cancelled, there are still many key events such as press conferences that will need to be carried out in a safe environment. A fever detection system can help to give key workers peace of mind in event environments.

Body Temperature Detection System versus Hand-held Thermometers

Body Temperature Detection System

30-plus people can be measured simultaneously in real time (within 30ms)
Dynamic real-time continuous detection
Enable people to continue moving in a flow, rather than stop-start
Intelligent, accurate and automatic temperature measurement
Facial detection technology prevents false readings by eliminating misreads from face masks, hats or heavy coats

Hand-held Thermometer Measurement

Manual, hand-held measurements taken
Individual temperature measurements can only be taken one person at a time
Stop-start process is only option, no high-level people flow
Manual measurement requires compromised social distancing and higher risk of physical contact

Enquire about our Body Temperature Detection Camera Systems now

Installation location*

Region or town or postcode

Please briefly describe what you need the body temp detection system for*

Your full name*

Company name (if applicable)

Your best contact number

Your email address*

Privacy statement We have the utmost respect for your privacy and will only use your contact details to send you information or talk to you in relation to our services. We will not trade your details with any third party but we may share your details with a third party in order to provide a service you have requested such as receiving our email newsletter. Please see our Privacy Policy and Terms and Conditions for further information.

Please select to confirm your agreement*

Yes, I consent to the Privacy Statement

Your enquiry is important to us. We will respond within one working day.

This field should be left blank

Body Temperature Solutions - Comparison Tables

Body Temperature Solution Case Studies

There is no end to the applications the body temperature detection camera systems will be effective in and we have many examples that we can discuss with you. Below is a series of case study PDFs provided by HikVision, the manufacturer of the body temperature camera systems. They highlight the diverse range of body temperature detection system solutions.

Zest Care Homes

Cardiff Stadium

Royal Hospital Chelsea Download PDF

SGL Carbon

St. James Hospital

Body Temperature Scanners FAQs

How do thermal imaging cameras work?

Thermal cameras detect temperature by recognizing and capturing different levels of infrared light. This light is invisible to the naked eye, but can be felt as heat if the intensity is high enough.

All objects emit some kind of infrared radiation and it’s one of the ways that heat is transferred. The hotter an object is, the more infrared radiation it produces. Thermal cameras can see this radiation and convert it to an image that we can then see with our eyes, much like how a night vision camera can capture invisible infrared light and convert it to an image that our eyes can see.

Can thermal imaging see through clothing?

Temperature variations are visible through clothing but the heavier/thicker the clothing, the less infrared is emitted as heat – that’s why clothes keep you warm in cold weather.

Body temperature detection cameras are designed to be more accurate when looking at visible skin, and the temperature of the human face is an accurate indication of body temperature. Thermal cameras may see heat radiating from a clothed area of the body but it will not in any way be an accurate indicator of body temperature.

Can thermal cameras be used to detect a virus or infection?

When the human body reacts to an infection, body temperature increases as a direct result of the process of fighting the infection.

A body temperature detection camera is designed to detect elevated human body temperature and will raise an alert when the detected temperature exceeds a predetermined level as this may indicate the presence of an infection in that person. This is, therefore, an excellent first-line defence against allowing potentially infected individuals into a building.

How far can the camera detect?

Body temperature detection cameras should be mounted approximately 1.5m from the ground, facing at oncoming people as they walk towards the camera.

Depending on the model of camera chosen, the distance between the thermal camera and the people whose temperature is being measured should be 0.8m – 2.5m or 2m – 7m.

How accurate is the temp detection?

A stand-alone body temperature detection camera is accurate to a temperature of ±0.5 °C.

If the temperature calibration unit, known as the blackbody calibrator, is added to the installation, this increases the temperature measurement accuracy to ±0.3 °C.
